SYSTEM HIGHLIGHTS

• Architectural & Aesthetic

• Modern Apperance

• Long Service Life

• Modular Construction

• Strong & Secure

• Popular Design Specification

PRODUCT DESCRIPTION

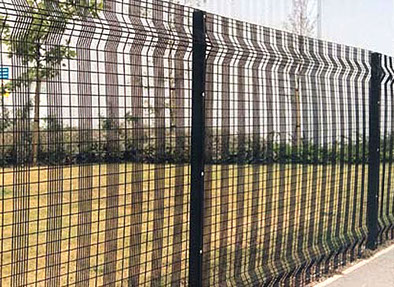

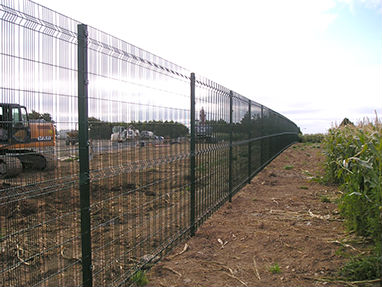

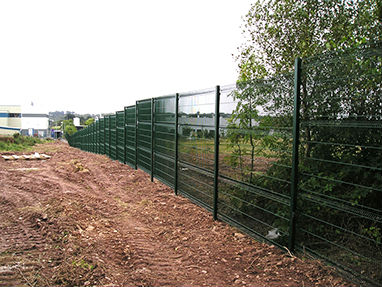

System Construction: The PHenZ steel welded mesh system consists of box section steel posts, 60 x 40 x 2.0/2.5 mm with a centre on centre distance 3056mm. Posts are extended for concreting in on site or can be supplied with a base plate drilled four times. A drive-in black plastic cap finishes the top of the post. Panels are connected to the post using a PHix Clip System. Panels consist of resistance welded steel wire with a mesh size of 39mm x 200mm to 19mm x 200mm, giving a strong yet very aesthetic visual appearance. The horizontal wires have a diameter of 6mm and the vertical wires have a diameter 0f 5mm. Reinforcing folds 2, 3 or 4 depending on height

• Mesh 43 x 200 - 20 x 200

• Vertical Wire 4mm

• Horizontal Wire 6mm

• Dimension of steel welded mesh panel 3056 x height (see below)

• Galvanised to EN1461

PHIX SYSTEM

• PHix Clip - Galvanised or Coated

• Tri-Lobal Anti Vandal Bolts

• Vibration Resistant

• Flexible Location Specific Fixing

• Number of Connections to Post - See Below
