PHenEX 5 (PH5)

SYSTEM HIGHLIGHTS



• Strong & Stable



• Economically Priced



• Long Service Life



• Modular Construction



• Aesthetically Pleasing



• Installer Driven Design



• Modern Appearance

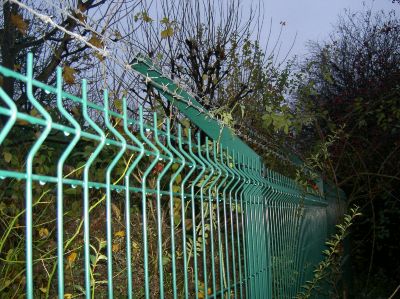

• Barbed Top Security

PRODUCT DESCRIPTION



System Construction:

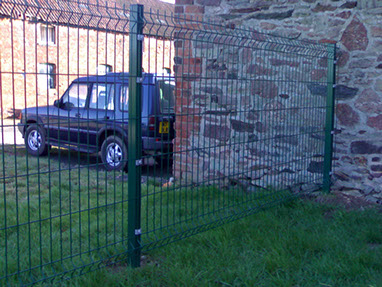

The PHenEx 5 steel welded mesh system consists of box section steel posts, 60 x 40 x 2.0/2.5 mm with a centre on centre distance 3030mm and 2515mm as an alternative. Posts are extended for concreting in on site or can be supplied with a base plate drilled four times. A drive-in black plastic cap finishes the top of the post. Panels are connected to the post using the galvanised PHix Clip system (alternative fixing methods can be offered - see separate detail), colour matched backplate and anti-tamper nuts. Panels consist of resistance welded steel wire with a mesh size of 55mm x 200mm, the horizontal wires and vertical wires have a diameter of 5mm. Reinforcing folds (2, 3 or 4 depending on height) enhance the strength and visual appearance

• Mesh 55 x 200

• Vertical Wire 5mm

• Horizontal Wire 5mm

• Dimension of steel welded mesh panels 3030mm x height (see below)

• Galva B Wire

• Resistance: Sag of 62mm for a load of 100kg exerted on centre of panel



PHIX SYSTEM

• PHix Clip - Galvanised or Coated

• Tri-Lobal Anti Vandal Bolts

• Vibration Resistant

• Flexible Location Specific Fixing

• Number of Connections to Post - See Below



U-BOLT SYSTEM

• Galvanised U-bolt

• 2 x Anti Tamper nuts

• Number of connections to post:See below

• Installer approved system

• Optional baseplate 4 x chemical anchors

* Other Heights on Request
