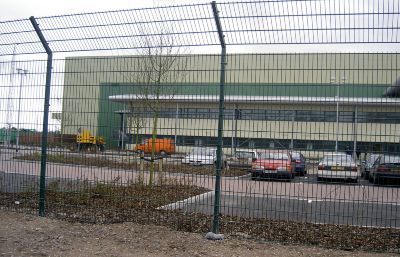

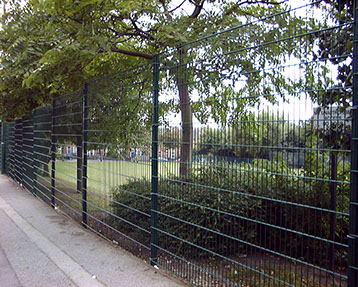

PHence 86 - PHence 65 (PH86/PH65)

SYSTEM HIGHLIGHTS



• Strong & Stable



• Secure



• Long Service Life



• Modular Construction



• Aesthetically Pleasing



• Installer Driven Design



• Competitively Priced



PRODUCT DESCRIPTION



System Construction:

The PHence 86 steel welded mesh system consists of box section steel posts, 60 x 40 x 2.0/2.5 mm with a centre on centre distance 2520mm. Posts are extended for concreting in on site or can be supplied with a base plate drilled four times. A drive-in black plastic cap finishes the top of the post. Panels are connected to the post using the PHix Clip System (see separate detail for alternative fixing methods). Panels consist of welded steel wire with a mesh size of 50mm x 200mm, the double horizontal wires have a diameter of 8mm, vertical wires have a diameter of 6mm



The PHence 65 system provides for the same rigid mesh construction as above whilst using a lighter duty panel comprising twin 6mm horizontal wires with 5mm vertical.

• Optional baseplate 4 x chemical anchors

• Mesh 50 x 200

• Vertical Wire 6mm

• Horizontal Wire 8mm

• Dimension of steel welded mesh panel

• 2506 x height (see below)

• Galvanised to EN1461k

• Tensile strength of wire:300 - 550 N/mm2



U-BOLT SYSTEM

• Galvanised U-bolt

• 2 x Anti Tamper nuts

• Number of connections to post:See below

• Installer approved system



PHIX SYSTEM

• PHix Clip - Galvanised or Coated

• Tri-Lobal Anti Vandal Bolts

• Vibration Resistant

• Flexible Location Specific Fixing

• Number of Connections to Post - See Below



CLAMP BAR SYSTEM

• 40mm x 5mm flats

• Stainless Steel M8 Button

• Retension Clips & Nutserts factory fitted



* Other Heights on Request
